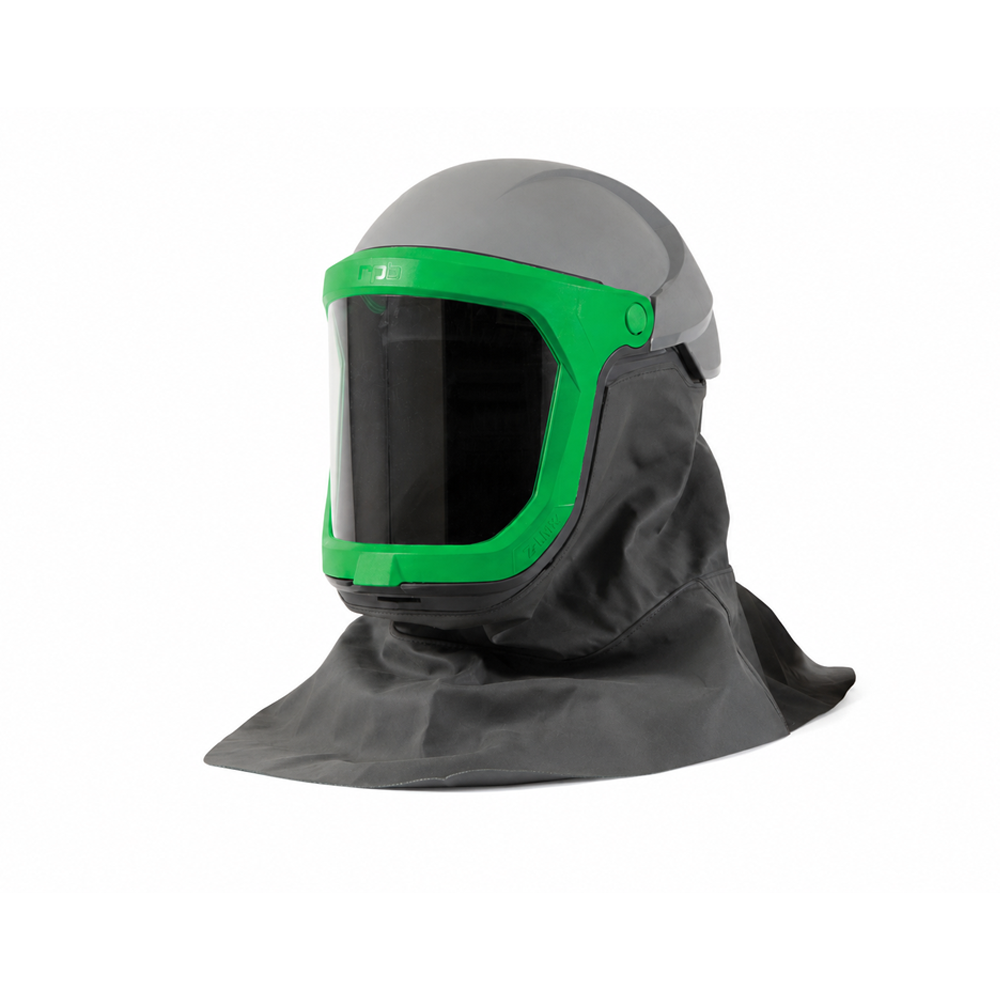

RPB Z-Link Respirator Headtop with Zytec FR Shoulder Cape

The RPB Z-Link® is a versatile loose-fitting respirator headtop designed for use as part of an approved powered air-purifying respirator or continuous-flow supplied-air respirator system.

This configuration combines the Z-Link headtop with a large, optically clear polycarbonate safety lens and a Zytec® FR shoulder cape, providing extended coverage around the neck and shoulders. When correctly assembled with an approved RPB PX5® PAPR, the appropriate PAPR breathing tube and a suitable approved filter, the shoulder-cape configuration is classified TH3 under EN 12941. Respiratory protection applies only when all required components are correctly connected and used as part of the approved system.

Designed for demanding industrial environments, the Z-Link supports respiratory, eye, face and head protection, subject to the standards and components applicable to the selected configuration. Its large safety lens provides excellent downward and peripheral visibility, while the adjustable padded head suspension and ratchet system helps distribute weight evenly and maintain a secure, comfortable fit during extended wear.

Airflow direction and distribution can be adjusted using the internal air-deflector system, allowing the wearer to direct the incoming air according to personal preference. The visor may be raised for communication only after the wearer has safely left the respiratory hazard or work area. It must not be opened while respiratory protection is required.

The included Zytec® FR shoulder cape extends coverage over the neck and shoulders and is particularly suitable for demanding applications involving metal cutting, grinding, brazing, fettling, thermal spraying, metalisation and foundry work. The broader Z-Link system may also be configured for painting, concrete cutting, chemical handling and other industrial applications, provided that the correct cape, filter, air-supply unit and approved accessories are selected following a workplace hazard assessment.

For welding applications, an appropriate approved Z-Link+® welding visor and welding lens configuration must be used.

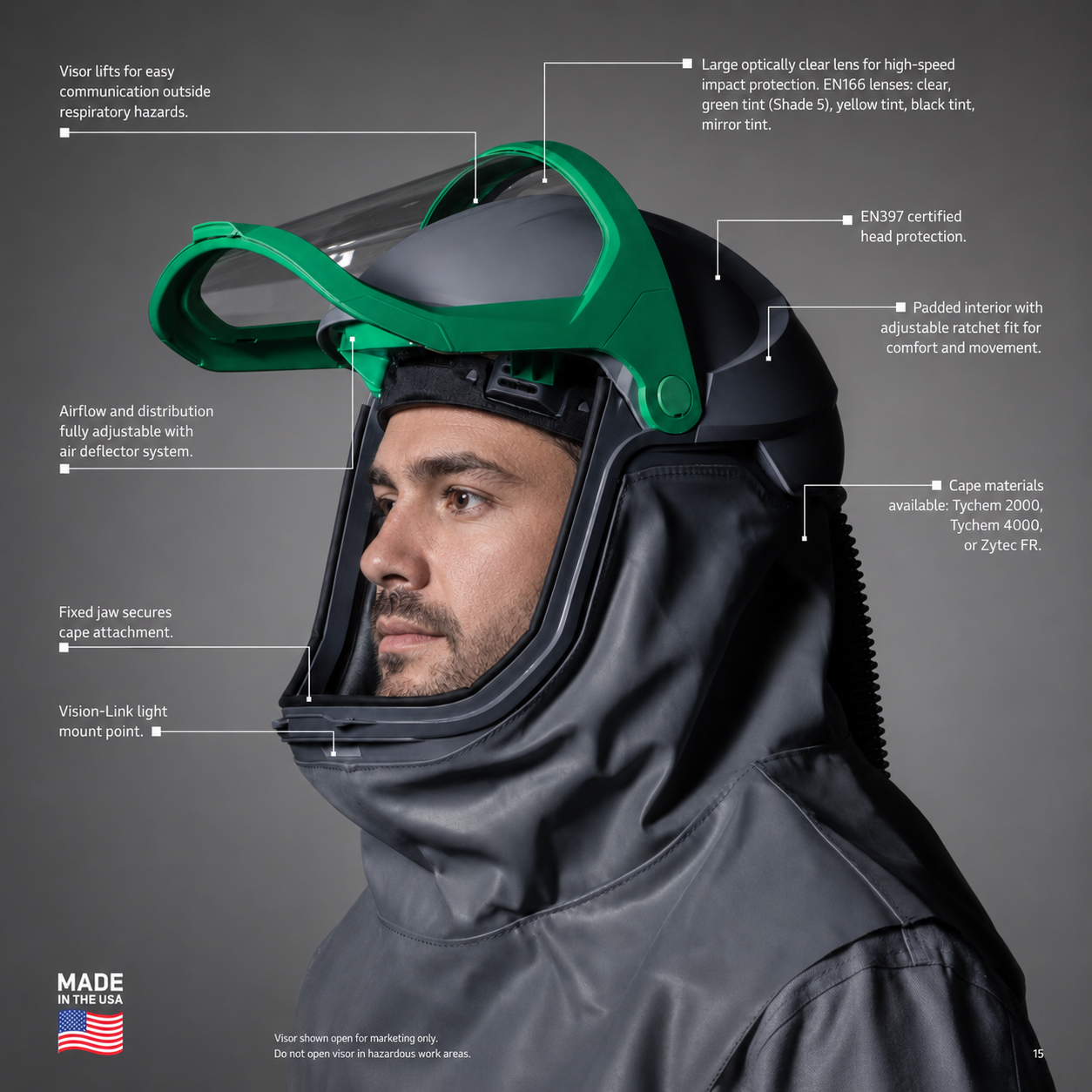

Visor & Lens

• Large, optically clear polycarbonate safety lens, high-speed impact rated
• Interchangeable lens tints available: clear, green (Shade 5), yellow, black, mirror

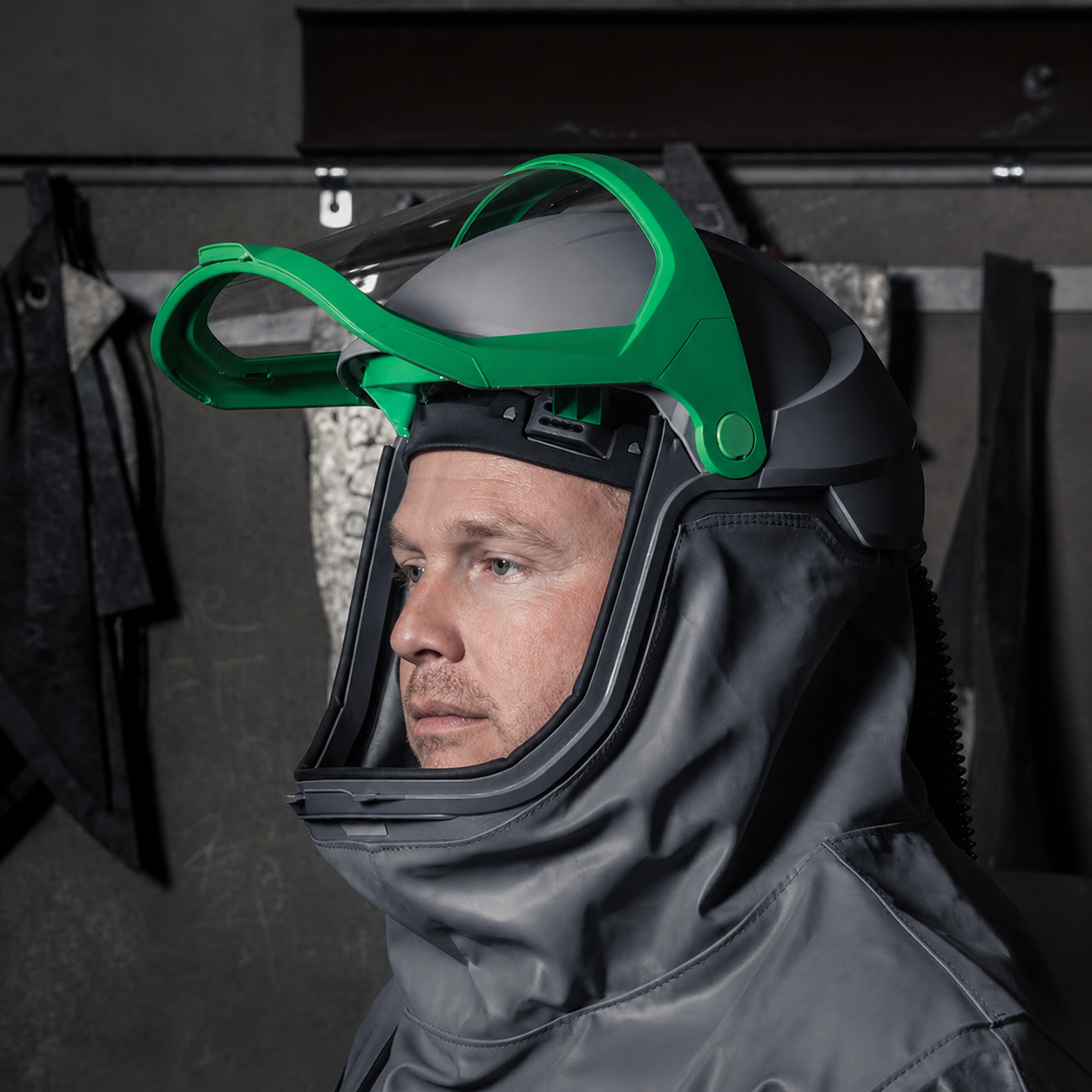

• Visor lifts up for easy face-to-face communication outside hazard zones

Fit System

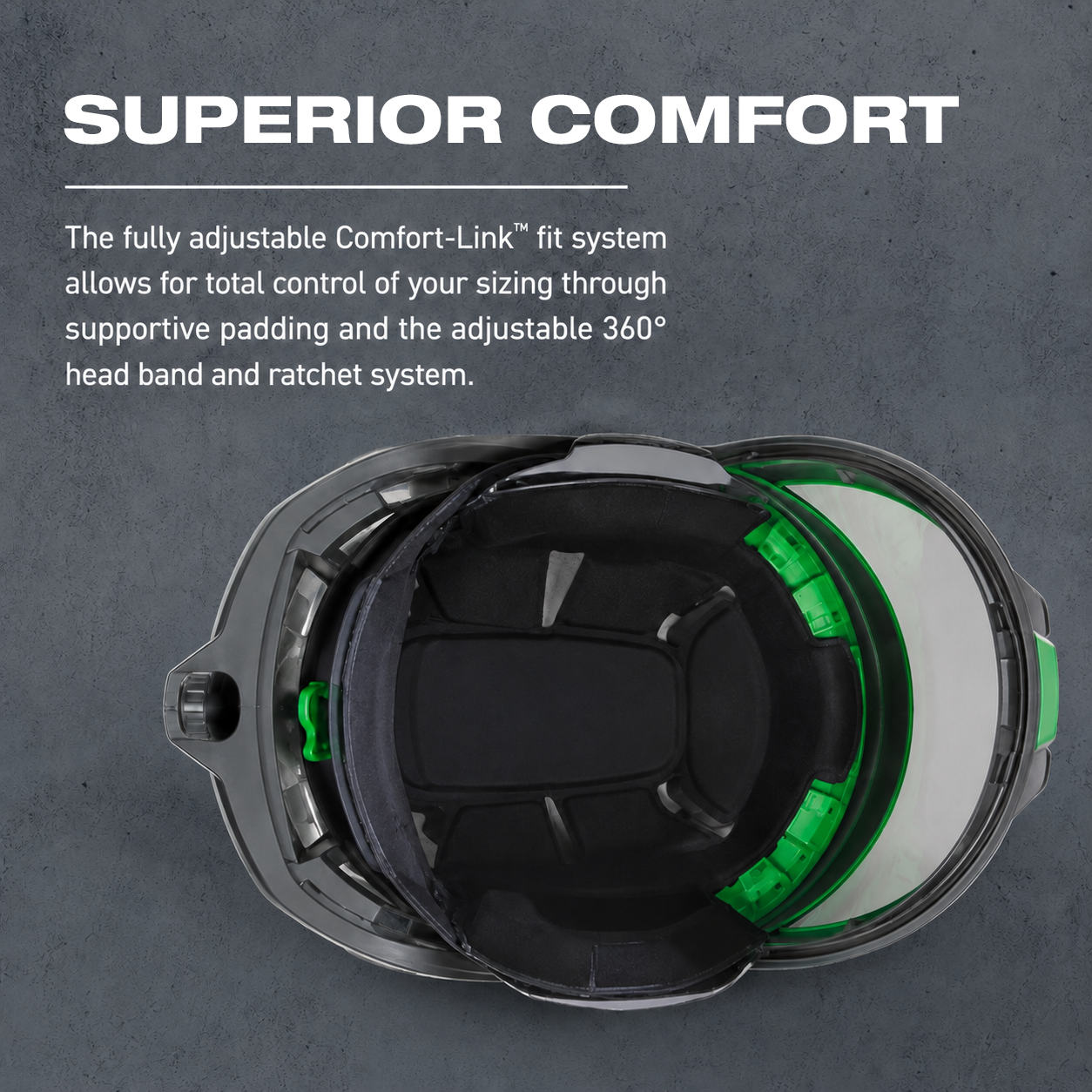

• Comfort-Link fit system with adjustable 360° ratchet headband
• Supportive interior padding for extended wear comfort
• Padded interior designed for freedom of movement

Airflow

• Fully adjustable airflow and distribution via built-in air deflector system

Cape & Coverage

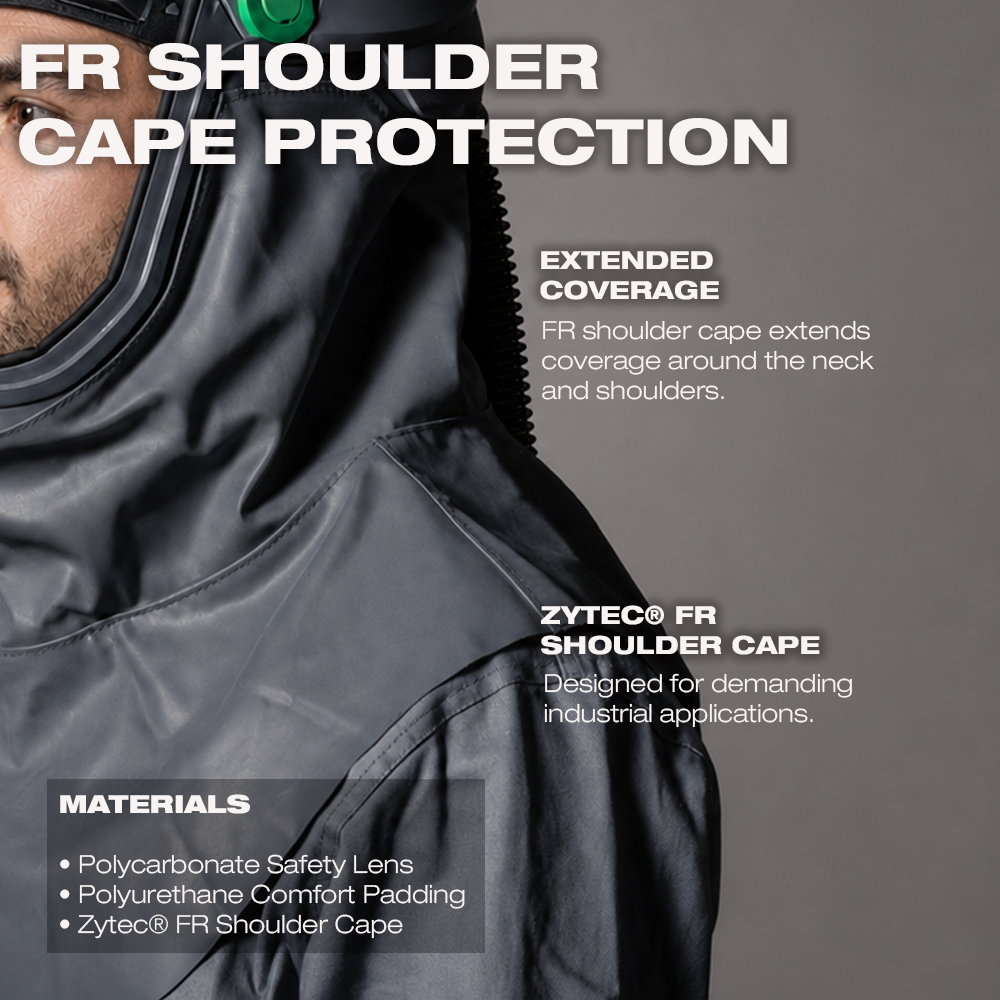

• Zytec FR (flame-resistant) shoulder cape included, extending protection around the neck and shoulders
• Additional cape material options available: Tychem 2000, Tychem 4000, Zytec FR
• Fixed jaw closure securely attaches cape to helmet shell

Additional Features

• Vision-Link mount point for compatible headlamp attachment
• Polyurethane comfort padding
• Made in the USA

Part No.: 16-000-21

Type: PAPR/SAR Type C Respirator Hood

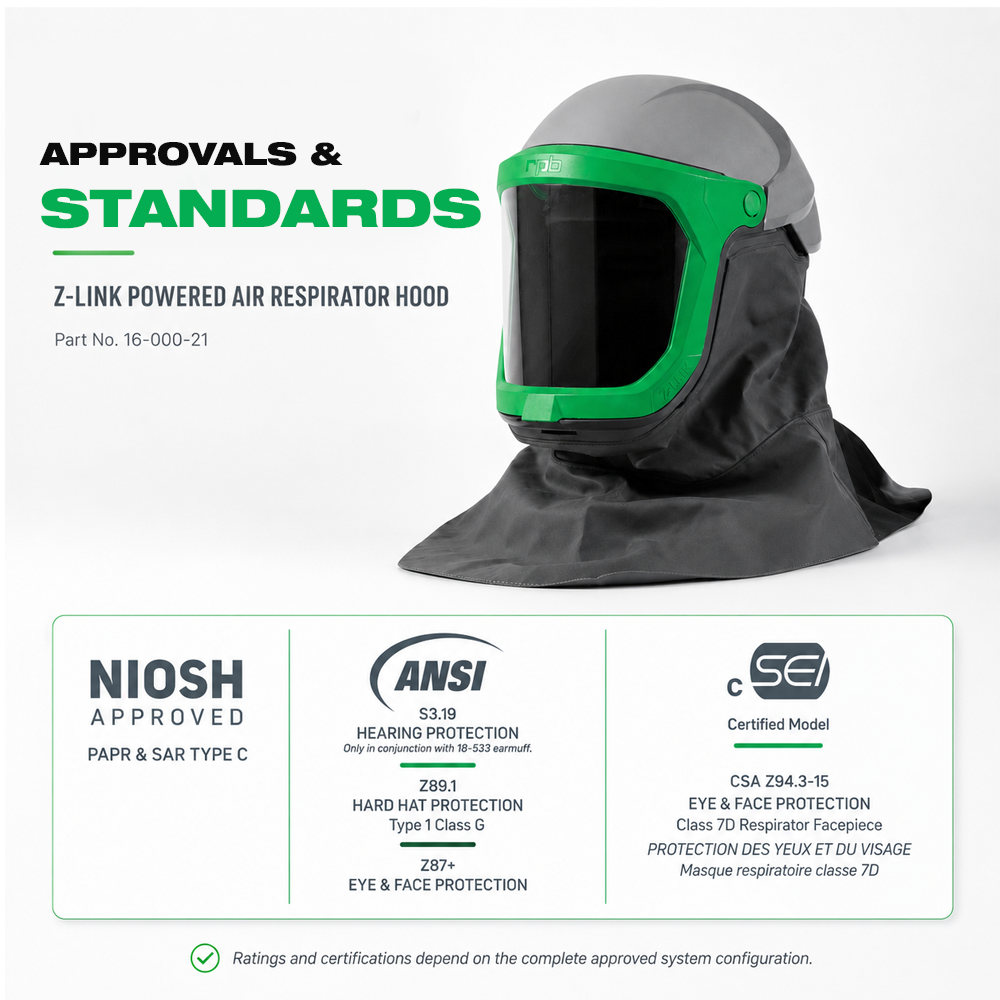

Certification: NIOSH Approved

Eye/Face: ANSI Z87+, CSA Z94.3-15

Head: ANSI Z89.1, EN397

Lens: EN166 (Clear/Green/Yellow/Black/Mirror)

Cape: Zytec FR (Tychem 2000/4000 optional)

Fit: Comfort-Link 360° ratchet
